Description

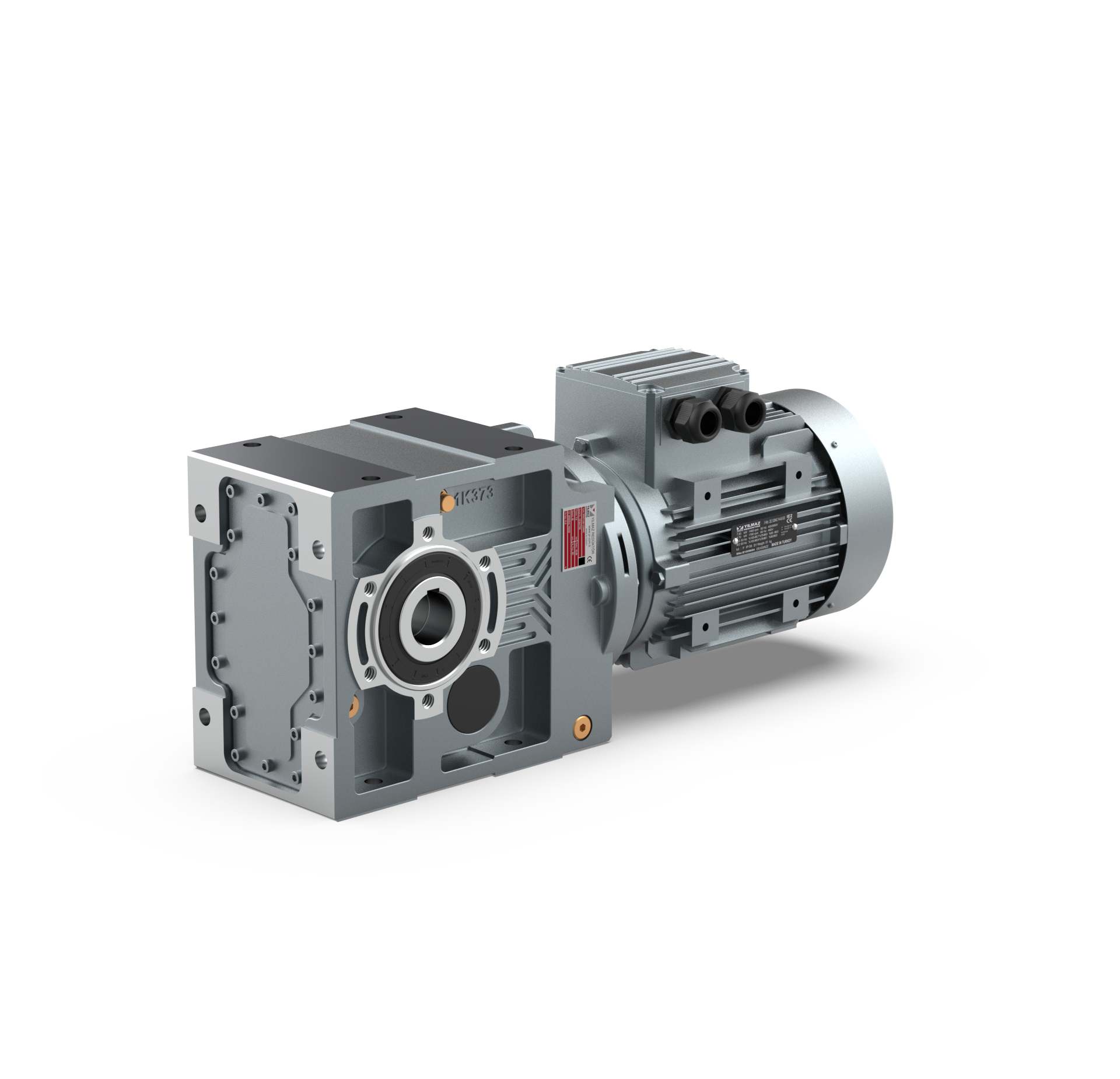

Yilmaz Reduktor K-Series right angle Bevel Helical Gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as SEW K Series, David Brown K Series and Flender B/K Series.
Yilmaz K-Series gearboxes are assembled in the UK from component part format for quick delivery and are a cost effective alternative to other leading manufacturers.
- Manufactured in Europe
- Cast iron housing
- Nominal torque 20,000nm
- 2 Year warranty
- Atex certification available
SPECIFICATIONS
- 11 different sizes to choose from
- Up to 6 stages reduction
- 80NM to 20,000NM nominal torque
- Ratio range from 6:1 – 15,619:1
- Input power from 0.12kw – 90kw
- IEC, solid shaft or NEMA input options
- Output shaft 20mm – 110mm diameter
- Accessories available include output shafts, flanges torque arm, shrink disc & backstop
- Mineral, synthetic & food grade lubricant options
Download the full catalogue here
K Series overview
